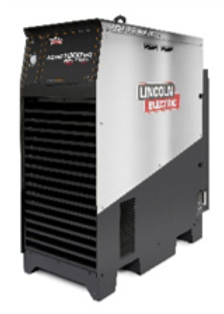

POWER WAVE® AC/DC 1000® SD

大容量デジタル制御AC/DC 溶接電源

K2803-1

特色

  • 380 - 575 VAC, 50/60Hz Voltage Input – Offers the ability to be connected anywhere in the world.

  • Easy to Parallel Machines or Run Multiple Arcs.

  • 3-Phase Voltage Input – Eliminates the imbalance associated with transformer-based AC welding machines.

  • Severe Duty – Can be stored outdoors. IP23 Rated.

  • Software Based Controls – Can be upgraded as new features become available.



入力電圧

  • 380/460/575/3/50/60

溶接プロセス

  • DC+ Submerged Arc, DC- Submerged Arc, Balanced AC Submerged Arc, Variable AC Submerged Arc

機器詳細

​特色・メリット

The Power Wave® AC/DC 1000® SD delivers Waveform Control Technology® to submerged arc welding. Choose constant current or constant voltage operation and set variable frequency and amplitude. Software-driven AC, DC positive or DC negative output allows the user to control the deposition rate and penetration. The result over conventional power sources is increased weld speeds, consistently higher quality welds and improved efficiencies in a single or multi-arc environment.

380 - 575 VAC, 50/60Hz Voltage Input – Offers the ability to be connected anywhere in the world.
Voltage Compensation and Reliable Input Voltage Connection – Provides consistent operation over ± 10% input voltage variation.
No Hardware Reconfiguration Required with Easy Polarity Switching – Eliminates downtime.
Easy to Parallel Machines or Run Multiple Arcs.
3-Phase Voltage Input – Eliminates the imbalance associated with transformer-based AC welding machines.
95% Power Factor Correction – Enables connection of multiple machines on the same plant infrastructure for lower installation costs.
Severe Duty – Can be stored outdoors. IP23 Rated.
ArcLink®, Ethernet, and DeviceNet™ Communication – Offers remote process monitoring, control and troubleshooting.
True Energy™ – Measures, calculates and displays instantaneous energy in the weld for critical heat input calculations.
Checkpoint™ – A cloud-based system to view or analyze your welding data. Track equipment usage, store weld data, configure fault limits and more.
Software Based Controls – Can be upgraded as new features become available.
iARC™ Digital Control - 90 times faster than the previous generation, delivering a responsive arc.
Factory Burn-In Tested - At maximum output for 2 hours to ensure quality and reliability.

​ドキュメント

取り扱いマニュアル1

取り扱いマニュアル2

仕様

入力電力

使用率

入力電流

出力範囲

寸法(H X W X D)

​総重量

XXXXXXX

XXXXXXX

XXXXXXX

XXXXXXX

XXXXXXX

XXXXXXX

アクセサリ
